Name: 400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
Brand: Pinnacle Technology Co., Limited
SKU: بي تي سي-A4030-50 واط
Price: 22,238.00 USD
Availability: InStock

المنزل > المنتجات > وحدة مضخم الطاقة RF >

400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module

400-3000MHz RF power amplifier module,50W broadband RF amplifier,wide band power amplifier module

50W broadband RF amplifier

wide band power amplifier module

مكان المنشأ:

شنتشن الصين

اسم العلامة التجارية:

PTC

إصدار الشهادات:

QS,CE

رقم الموديل:

بي تي سي-A4030-50 واط

اتصل بنا

الطلب (أ) اقتباس

تفاصيل المنتج

إبراز:

400-3000MHz RF power amplifier module,50W broadband RF amplifier,wide band power amplifier module

50W broadband RF amplifier

wide band power amplifier module

شروط الدفع والشحن

الحد الأدنى لكمية

1 قطعة

الأسعار

Neg

تفاصيل التغليف

تعبئة الكرتون

وقت التسليم

3-30 أيام

شروط الدفع

ويسترن يونيون ، T / T ، L / C ، D / A ، D / P

القدرة على العرض

50000/م

منتجات ذات صلة

فيديو

RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement

احصل على أفضل سعر

فيديو

Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power Suitable for 5G WiFi 6 Satellite and Radar System Applications

احصل على أفضل سعر

فيديو

400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module

احصل على أفضل سعر

مكبر الصوت الصلب 200W عالية الطاقة 2.4G

احصل على أفضل سعر

اتصل بنا

اتصل الآن

وصف المنتج

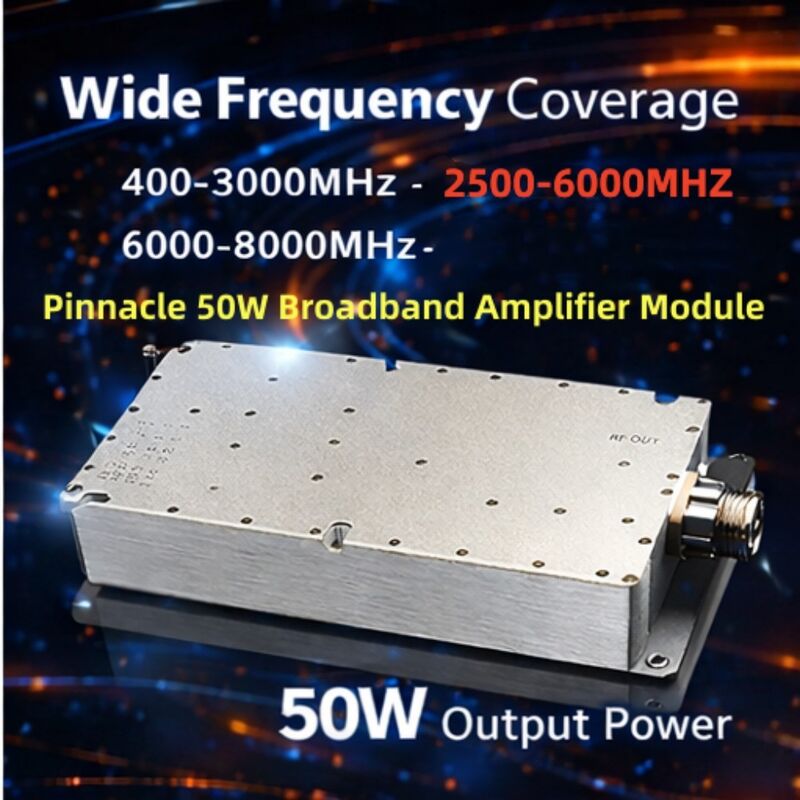

400-3000MHz Broadband Wide Band 50W RF Power Amplifier Module

This 400-3000MHz RF Module 50W Power Amplifier is a no signal source power amplifier module delivering 50W output power. Available in multiple frequency ranges including 400-3000MHz, 2500-6000MHz, and 6000-8000MHz RF PA configurations.

Key Features

Ultra-Wideband Performance

Seamless coverage from 400MHz to 3000MHz, eliminating the need for multiple narrow-band amplifiers.

Advanced GaN Technology

Utilizes high-efficiency Gallium Nitride on Silicon Carbide (GaN-on-SiC) devices for superior power density and thermal management.

Built-in Protection

Includes integrated circuitry for over-temperature protection and VSWR (Voltage Standing Wave Ratio) protection to prevent damage from signal reflection.

Compact & Rugged Design

Housed in a precision-machined aluminum alloy chassis, designed to withstand harsh industrial and military environments.

Customization Options

Frequency range and output power can be customized according to specific requirements.

Applications

Electronic Countermeasures (ECM): Ideal for signal jamming and broad-spectrum interference systems
Test & Measurement: A reliable lab-grade power source for EMC testing and antenna measurements
Communication Systems: High-power booster for 5G, Wi-Fi 6, and satellite ground stations
Radar Systems: Pulse and CW (Continuous Wave) applications for modern radar detection

Technical Specifications

Parameter	Specification
Frequency Range	400-3000MHz
Output Power (P_sat)	≥50W
Gain	≥50dB
In-band Gain Flatness	≤5.0dB
Working Current	≤5.5A
Connector	SMA-Female
Power Supply & Control Interface	DB7W2
VCC Power Supply & Maximum Voltage	+28V, +32V
Dimension	180×90×25mm (Not including connectors)
Net Weight	1kg
Power Supply Wire	Red+Black+Enable wire
Working Temperature	-40℃ to +55℃
